Oz64
BY PINE64
The Oz64

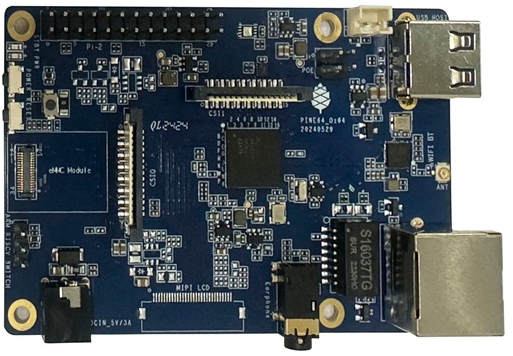

The Oz64 is a low cost single-board computer based on the Sophgo SG2000 SoC with dual T-Head C906 64-bit RISC-V cores, an ARM Cortex A53 64-bit RISC CPU core and an 8051 8-bit core supported by 512 MB of embedded DRAM memory, with WiFi and Bluetooth radio interfaces.
The Oz64 SBC comes in a model-B form-factor, has a microSD card slot, an eMMC plugin connector, an USB 2.0 Type-A host port, and many other peripheral interfaces for makers to integrate with sensors and other devices.
Features and Specifications
| I/O Interface | UART I2C SPI I2S |
| Camera and display interface | MIPI-CSI 2 lanes MIPI-DSI 2 lanes |
| Communication | 2.4GHz 1T1R Wifi 6 BLE 5.2 10/100Mbps Ethernet |
| Expansion | 40 pins Breadboard friendly form factor |
| Package contents | Oz64 board |
Stores
| Global |
| Global: Accessories |
| Affiliates |
Documentation
| Oz64 |
