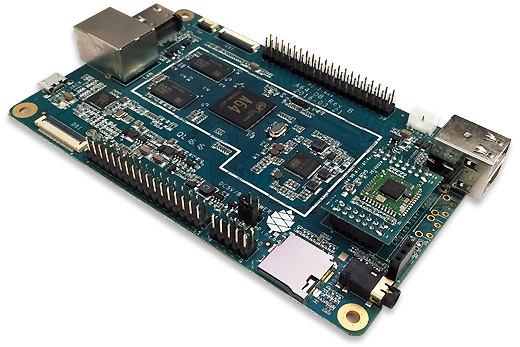

PINE A64 and PINE A64+
BY PINE64
Our First 64-bit Single Board Computer
This is where our journey began. The PINE A64 (+) is our first Single Board Computer powered by Allwinner’s A64 quad-core ARM Cortex A53 64-Bit SoC. There are many Operating Systems available for the PINE A64 (+) created by the open source community and various partner projects. Currently the majority of Linux distributions for the PINE A64 are using mainline Linux but there are a number of BSP-based distribution and / or legacy systems that you can download too.
Apart from Linux, you also have a choice of a selection of *BSD, Android, Remix OS and Windows IoT.
Features and Specifications
| SoC | 4 x ARM Cortex A53 cores @ 1.152 GHz |
| GPU | ARM Mali 400 MP2 GPU |
| Memory | DDR3 RAM (up to 2GB) |
| Networking | Gigabit Ethernet |
| Flash Memory | Micro SD |
| Connections | HD digital video out 2x USB 2.0 Host Euler bus Expansion bus PI-2 bus Touch Panel (TP) port Display Serial Interface (DSI) port IR R/X port Real Time Clock Port (RTC) Lithium battery port CMOS Sensor Interface port Optional expansion module with 802.11 b/g/n WiFI and Bluetooth 4.0 3.5mm headphone jack Micro USB power (5V 2A) port |
Quad-Core A64 SoC
First broadly avaliable quad-core ARM64 platform
2GB DDR3 RAM
Up to 2GB DDR3 RAM
Gigabit Ethernet
Built-in Ethernet port allows for fast internet access
WiFi And Bluetooth
Optional 802.11 b/g/n WiFi and Bluetooth 4.0 module
Documentation
| PINE A64 |
| Schematics and certifications |
