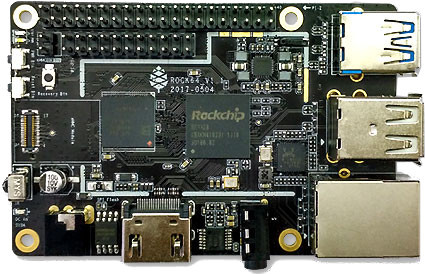

ROCK64
BY PINE64
A Small Form-Factor Single Board Computer Capable of 4K playback
ROCK64 is a credit card sized Single Board Computer powered by Rockchip RK3328 quad-core ARM Cortex A53 64-Bit Processor and support up to 4GB 1600MHz LPDDR3 memory. It provides an eMMC module socket, MicroSD Card slot, Pi-2 bus, Pi-P5+ bus, USB 3.0 and many others peripheral devices interface for makers to integrate with sensors and devices.
Various operating systems are made available by open source community and partner projects including numerous Linux Distributions, Android, *BSD and more.
The ROCK64 4GB board is designated as LTS (Long Term Supply), which means that PINE64 is committed to supply it for at least 5 years – up until 2022 and possibly beyond.
Features and Specifications
| SoC | 4 x ARM Cortex A53 cores @ 1.5 GHz |
| GPU | ARM Mali 450 MP2 GPU |
| Memory | LPDDR3 RAM (up to 4GB) |
| Networking | Gigabit Ethernet |
| Storage | Micro SD Slot eMMC module slot SPI Flash 128Mbit |
| Connections | 4K digital video out 2x USB 2.0 Host 1x USB 3.0 Host PI-2 bus PI-P5+ bus IR R/X port Real Time Clock (RTC) port Power Over Ethernet (POE) (when using optional HAT module) A/V jack Power, Reset and Recovery buttons 3.5mm barrel power (5V 3A) port |
Quad-Core RK3328 SoC
Quad ARM Cortex A53 cores @ 1.5 GHz and a ARM Mali 450 MP2 GPU which is well supported by Lima
Gigabit Ethernet
Built-in Ethernet port allows for fast internet access
Power Over Ethernet
With an optional HAT module you can power the ROCK64 using POE
4GB LPDDR3 RAM
Up to 4GB of LPDDR3 RAM
Documentation
| ROCK64 |
