SOPINE
BY PINE64
Like the PINEA64-LTS, just much smaller

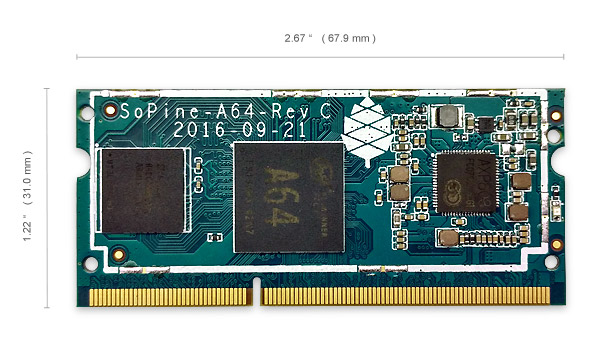

The SOPINE is a compute module powered by the same Quad-Core ARM Cortex A53 64-Bit Processor used in the PINE A64 with 2G LPDDR3 RAM memory, Power Management Unit, SPI Flash and integrated MicroSD Slot (for bootable OS images microSD card). The SOPINE module has a 5 years LTS (Long Term Supply) status, which means that it will be supplied to 2022 at the very least. There is a one year warranty period for the SOPINE module.
This tiny compute module uses SODIMM-DDR3 form-factor and can be paired with either the Clusterboard, the Baseboard or a custom host PCB for industrial or other embedded applications. It is fully compatible with the PINE A64-LTS in terms of software support
Features and Specifications
| SoC | 4 x ARM Cortex A53 cores @ 1.152 GHz |
| GPU | ARM Mali 400 MP2 GPU |
| Memory | LPDDR3 RAM (2GB) |
| SPI | SPI Flash 128Mbit |
| Connections | CMOS sensor interface port |
| Form factor | SODIMM form-factor |
Versatile A64 SoC
The A64 SoC is a versatile SoC perfect for compute functionality
2GB Of LPDDR3 RAM
Each module comes with 2GB of built-in LPDDR3 RAM
Built-In SPI Flash
Each module comes with 128Mbit of SPI Flash memory
SODIMM Form-Factor
With the small SODIMM form-factor the SOPINE is perfect for use as a compute module or in a embedded project
Documentation
| SOPINE |
| Schematics and certifications |
