A versatile single board computer for makers

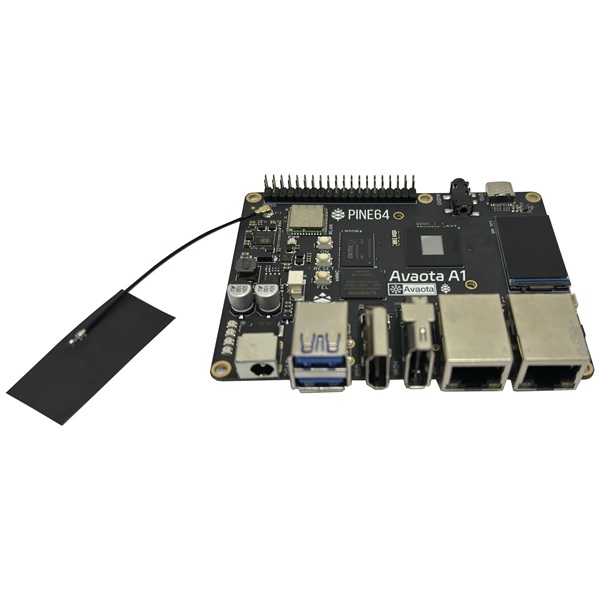

The Yuzuki Avaota-A1 is powered by an Allwinner A527 Octa-Core ARM Cortex-A55 64-Bit CPU @2.0GHz, ARM Mali G56 GPU and RISC-V XuanTie E906 CPU@200MHz. It provides an onboard eMMC, MicroSD Card slot, PCI-e, Pi-2 Bus, USB 3.0, and many other peripheral interfaces for makers to integrate with sensors and other devices.
Features and Specifications
| SoC | 4 x ARM Cortex-A55 at 2.0 GHz |
| Memory | LPDDR4 RAM (2/4GB) |
| GPU | Mali-G57 Valhall GPU @ 850MHz |
| Features | Digital Video output up to 4K@60Hz H.264/AVC Base/Main/High/High10 profile @ level 5.1; up to 4K×2K @ 30fps H.265/HEVC Main/Main10 profile @ level 5.1 High-tier; up to 4K×2K @ 60fps 3.5mm audio Jack Dual 10/100/1000Mbps Ethernet 2.4GHz/5Ghz MIMO WiFi 802.11 b/g/n/ac with Bluetooth 5.2 on-board 128Mbit (16MByte) XSPI NOR flash memory - bootable microSD - bootable, supports SDHC and SDXC and storage up to 256GB eMMC - bootable on-board 16GB or 32GB 2×20 pins “Pi2” GPIO Header 4 lane MiPi DSI port for LCD panel 4 lane MiPi CSI port for camera module 1 x USB3.0 OTG port 1 x USB2.0 Host port 1 x USB2.0 OTG port 1 x CAN port |
