ALPHA-One: Specifications
Main Board and SoC Specification
- Based on StarPro64 Single Board Computer wiki page
- Based on ESWIN EIC7700X SoC

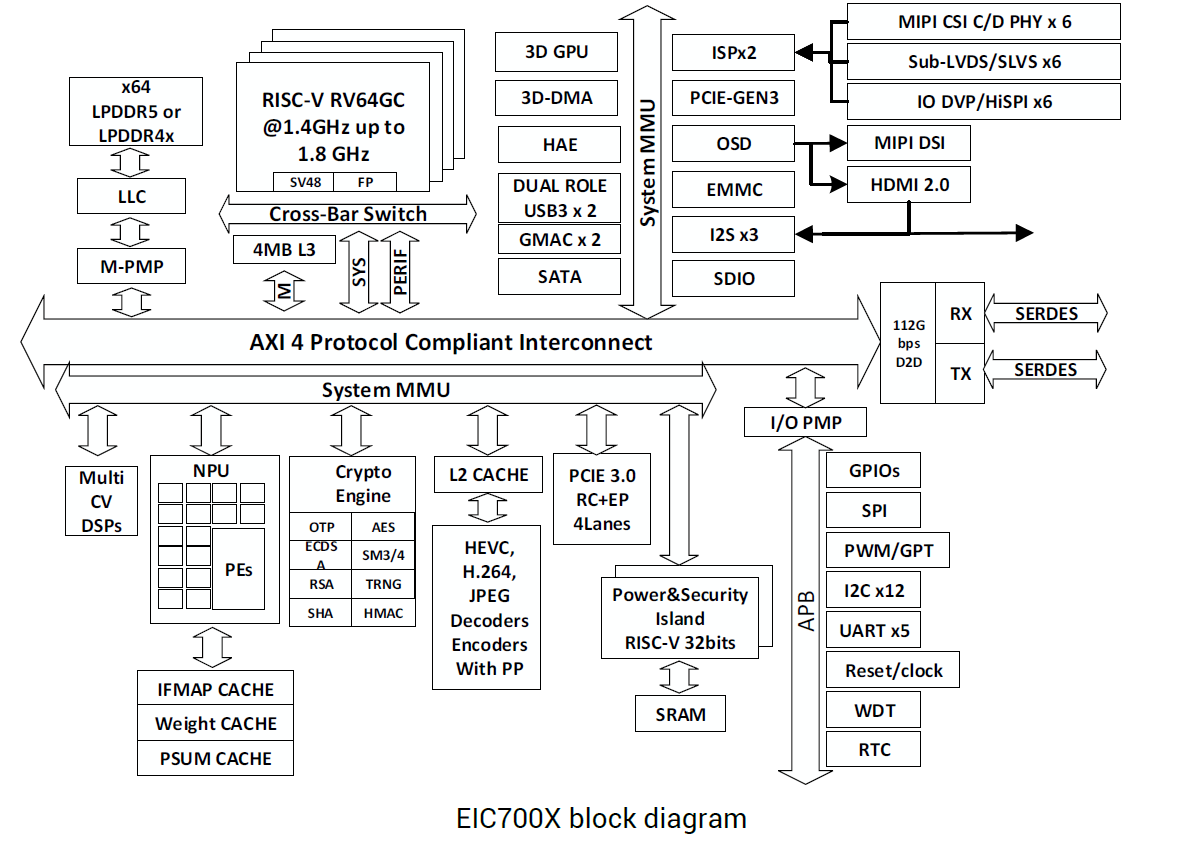

EIC7700X block diagram
Features
System Memory
- 32GB 64bits LPDDR5@6400MHz RAM Memory.
- 64GB eMMC preintsalled with 7b Deepseek/Qwen LLM
Case
- CNC from single Aluminum block
- Passive cooling, built-in heat pipe that directly contact with SoC
Network
- Dual 10/100/1000Mbps Ethernet
- 2.4GHz/5GHz MIMO WiFi 802.11 b/g/n/ac/ax with Bluetooth 5.3
Expansion Ports
- 2× USB3.0 Dedicated Host port
- 2× USB2.0 Shared Host port
- Digital Video output up to 4K@60Hz
- 3.5mm audio Jack with mic in
Certifications
- Not yet available
Potential Improvement
- Current 7bLLM throughput is around 3.5 tokens/second using docker form, potential improve upto 10 tokens/second when operates LLM in native mode.
- Potential increase LLM capability from 7b to 15b with system software optimization
- If ALPHA-One proven its potential, consider release ALPHA-Two which can host up to 30b LLM
