Quartz64: Pinout

Model “A”

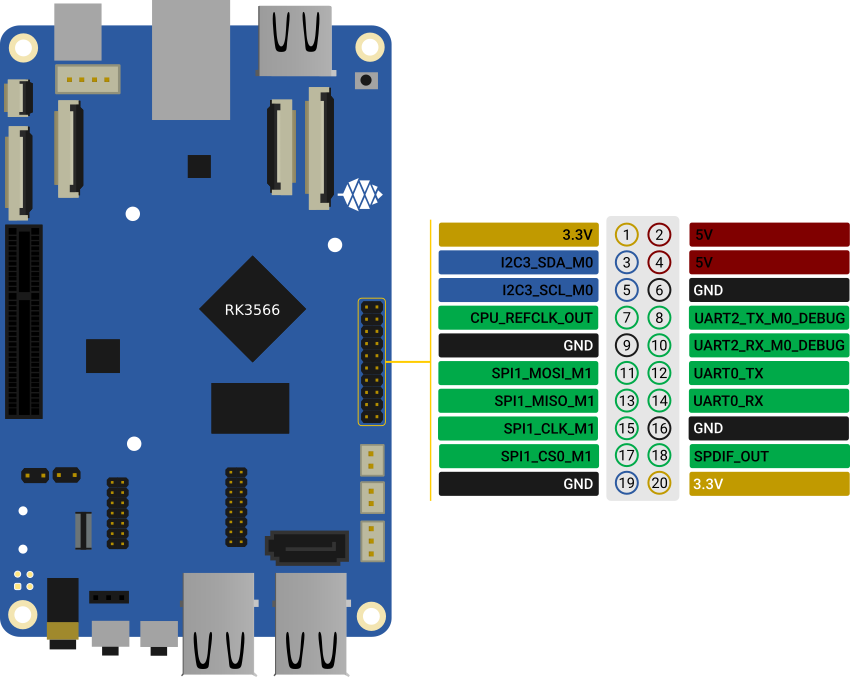

The Quartz64 Model A board pinout

The Quartz64 Model A board pinout

Model “B”

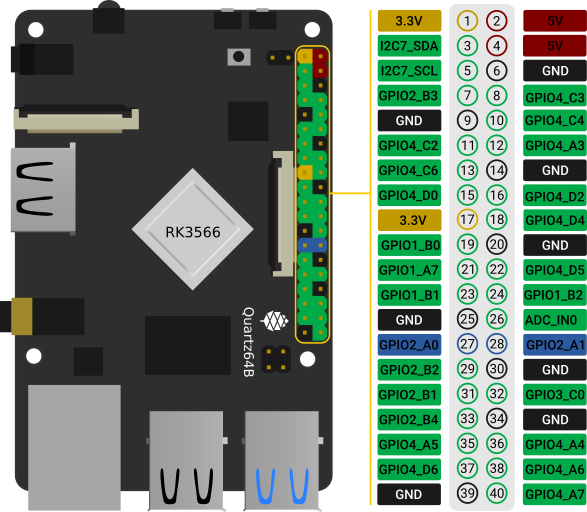

The Quartz64 Model B board pinout

The Quartz64 Model B board pinout
