StarPro64: Specifications

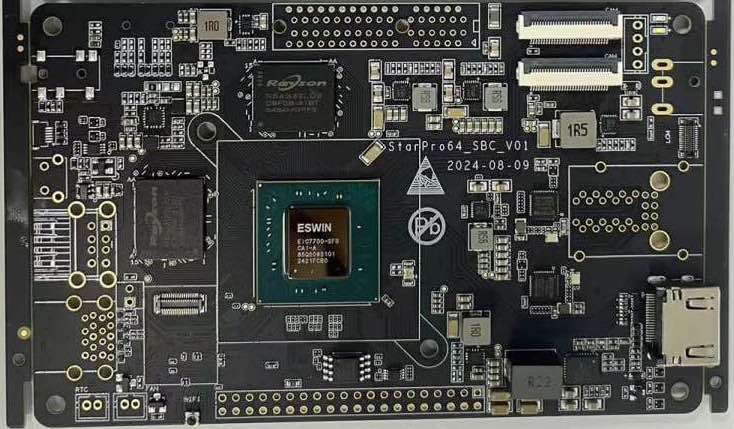

The StarPro64

The StarPro64

The StarPro64 backside

The StarPro64 backside

SoC and Memory Specification

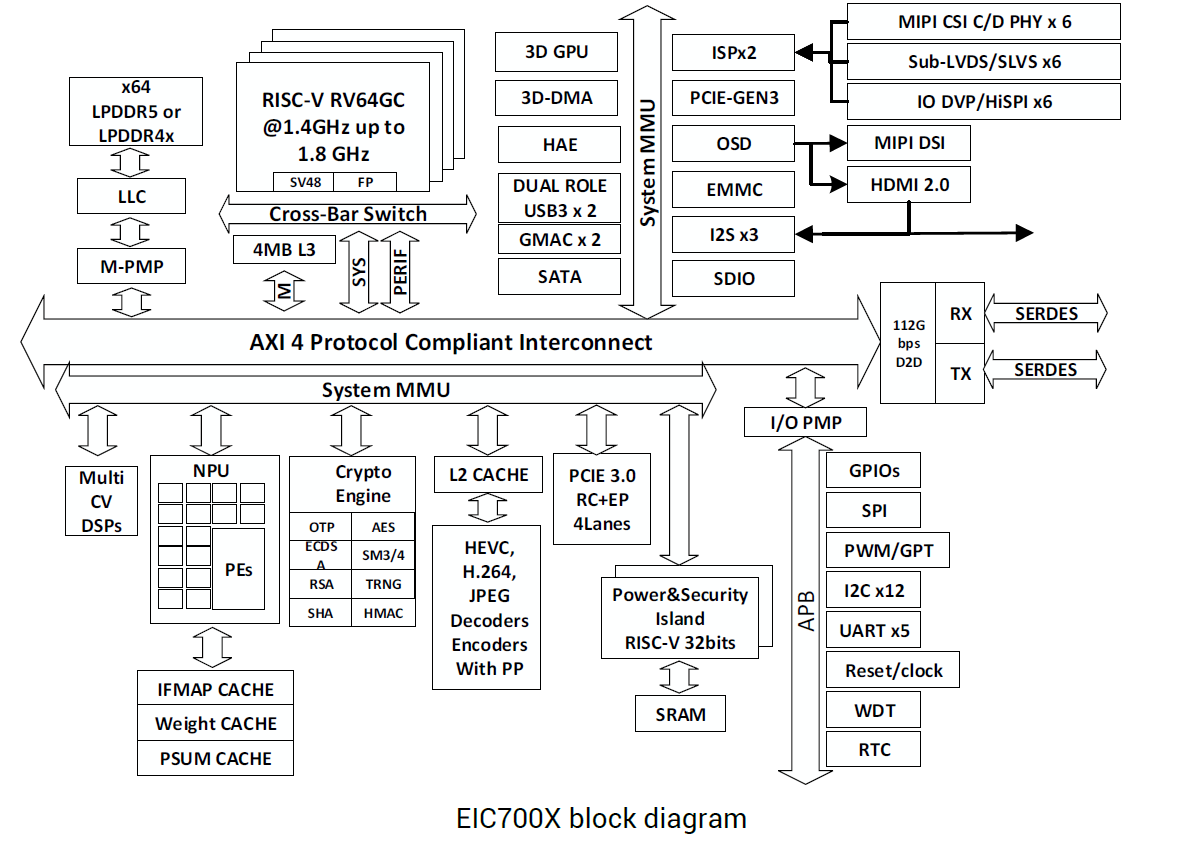

EIC7700X block diagram

EIC7700X block diagram

CPU Architecture

  • Quad-core P550 up to 1.8GHz CPU
  • Fully compliant with the RISC-V RV64GBC ISA specification
  • 64-bit RISC-V Application Core
  • Features 13-stage, triple-issue, out-of-order pipeline
  • 32KB L1 I-cache with ECC
  • 32KB L1 D-cache with ECC
  • Private 256KB L2 Cache
  • Shared 4MB L3 Cache

GPU Architecture

  • Imagination Technology AXM-8-256 up to 600Mhz GPU
  • Support OpenCL 3.0
  • Support OpenGL ES 3.x
  • Support Vulkan 1.3
  • 128-wide arithmetic logic unit (ALU) design
  • Visually Lossless image compression – frame buffer compression and decompression (FBCDC) algorithm
  • Lossless data compression – geometry compression, which is performed in the Geometry Processing phase of the 3D graphics workload
  • Performance: 256 FP32 FLOPs/Clock, 1024 AI INT8/Clock

NPU Architecture

  • 19.95 TOPS(INT8), 9.975TOPS(FP16 or INT16)

System Memory

  • 32GB 64bits LPDDR5@6400MHz RAM Memory.

Board Features

Video

  • Digital Video output up to 4K@60Hz
  • H.264/AVC Base/Main/High/High10 profile @ level 5.1; up to 4K×2K @ 60fps
  • H.265/HEVC Main/Main10 profile @ level 5.1 High-tier; up to 4K×2K @ 60fps

Audio

  • 3.5mm audio Jack

Network

  • Dual 10/100/1000Mbps Ethernet
  • 2.4GHz/5Ghz MIMO WiFi 802.11 b/g/n/ac/ax with Bluetooth 5.3

Storage

  • on-board 128Mbit (16MByte) XSPI NOR flash memory - bootable
  • microSD - bootable, supports SDHC and SDXC and storage up to 256GB
  • eMMC - bootable (optional eMMC Module)
  • 2× USB3.0 Dedicated Host port
  • 2× USB2.0 Shared Host port

Expansion Ports

  • PCIe Gen3 ×4 lane
  • 2×20 pins “Pi2” GPIO Header
  • 4 lane MiPi DSI port for LCD panel
  • 4 lane MiPi CSI port for camera module

Board Information, Schematics and Certifications

Model “A” Baseboard Dimensions: 133mm×80mm×19mm

Input Power: DC 12V @ 3-5A 5.5mmOD/2.1mmID center-positive Barrel DC Jack connector

Schematic:

Certifications:

  • Disclaimer: Please note that PINE64 SBC is not a “final” product and in general certification is not necessary. However, PINE64 still submits the SBC for FCC, CE, and ROHS certifications and obtain the certificates to prove that the SBC board can pass the testing. Please note, a final commercial product needs to perform its own testing and obtain its own certificate.
  • Not yet available

Datasheets for Components and Peripherals

ESWIN EIC7700X SoC information:

LPDDR5 (315 Balls) SDRAM:

eMMC information:

SPI NOR Flash information:

Ethernet related info:

  • TBA

WiFi/BT module info:

Bringup Notes
